LMS Route: Evesham to Birmingham

Broom Junction Station: mrbj158

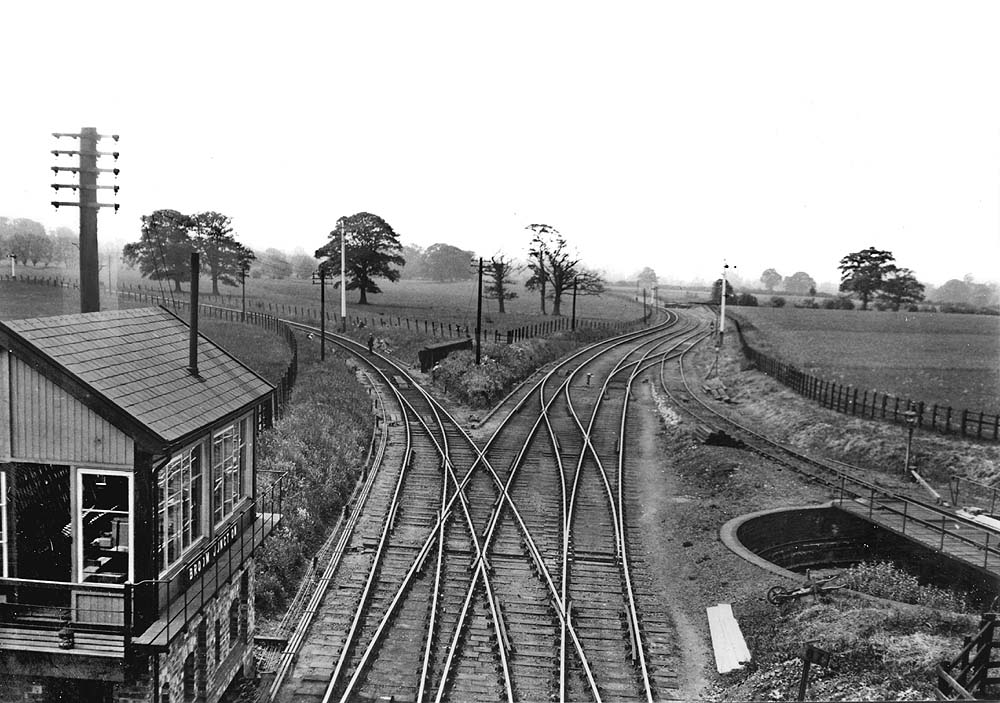

View of Broom Junction Signal Box on the left with the SMJ line curving away to the left and the Evesham line continuing ahead

View of Broom Junction Signal Box on the left with the SMJ line curving away to the left and the Evesham line continuing ahead in 1933. On the right in the foreground is Milepost 67, indicating the junction was 67 miles from Derby, the headquarters of the Midland Railway. The signal box, built in 1892, was the second signal box on this site and was formerly Broom South Signal Box. It was to be replaced by the LMS the following year when the replacement signal box also took over the duties of Broom North Signal Box. When the south junction was installed in 1942, to connect the SMJ line to the Midland Railway line to Gloucester in order to facilitate the smooth flow of traffic from the south to the Midlands and London, the signal box was renamed Broom North Signal Box with the two other signal boxes controlling the south junction being named Broom East and Broom West, the latter being further down the MR line towards Evesham.
