LMS Route: Evesham to Birmingham & the SMJ Railway

Broom Junction Station: mrbj1357

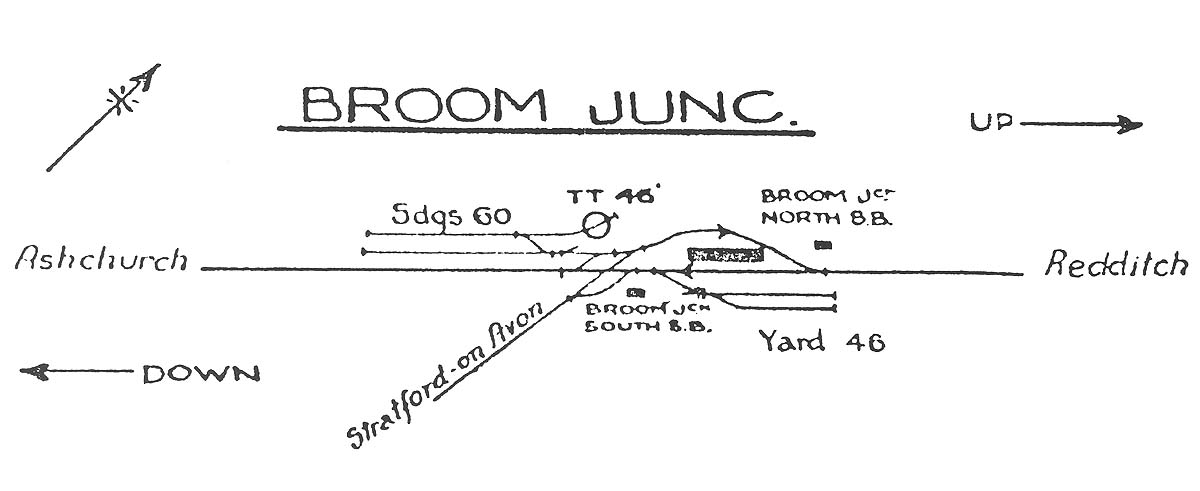

A 1932 LMS track diagram showing the signal boxes, sidings and turntable at Broom Junction station. The diagram shows that the up line was towards Derby (as was the case with all Midland Railway routes, rather than London as was the case with the LNWR, GWR and other railways with their headquarters in the capital. The two exchange sidings accommodated 60 wagons whilst the goods yard's two sidings accommodated 46 wagons.
