Rugby Station: lnwrrm2413

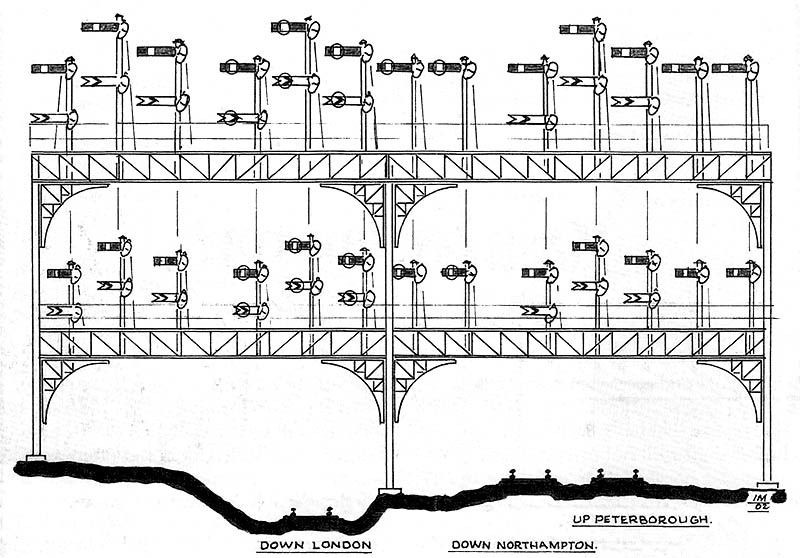

Diagram showing the location of the tracks controlled by the signal gantry and their relevant signals

Diagram showing the location of the tracks controlled by the signal gantry and their relevant signals. Each of the three lines identified above led on to other lines which had its own dedicated signal on the signal gantry. These were:

Down London line to:
Goods Loop, with fixed Distant
Through Line, with Rugby No 2 Distant/Rugby No 4 Outer Distant
Platform 1, with Rugby No 2 Distant

Down Northampton line to:
Goods Loop with fixed Distant
Through line, with Rugby No 2 Distant/Rugby No 4 Outer Distant
Platform 1, with Rugby No 2 Distant
Bay 7
Bay 8

Up Peterborough line to:
Goods Loop with fixed Distant
Through line with fixed Distant
Platform 1, with Rugby No 2 Distant/Rugby No 4 Outer Distant
Bay 7
Bay 8

Courtesy of Great Central Signalman by Iain Mackenzie and PJ Wortley Silver Link - ISBN 1 85794 234 5
