Bearley Junction: gwrbj808

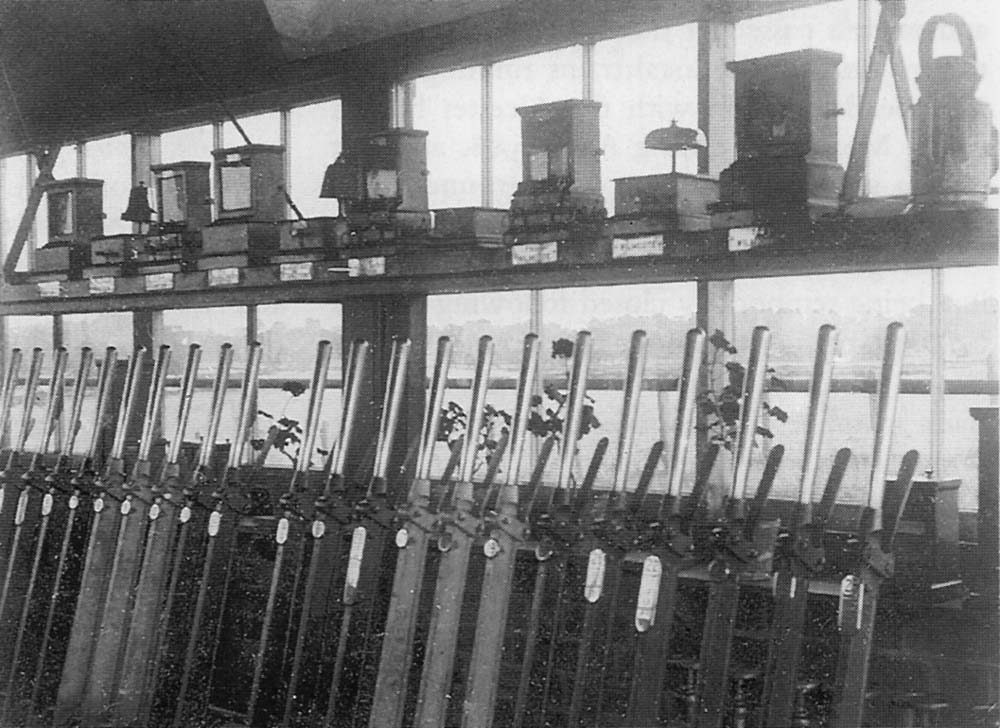

View inside Bearley West Junction Signal Box and its 25
lever frame which dates with the North Warwickshire line opening in 1907. It is
a Great Western Type 7d brick box with a hipped roof. The characteristic
3up-2down window pane arrangement was designed to improve the signalmans
view, by reducing the number of glazing bars when looking down at an
approaching train. For the same reason the block instruments and bells were
arranged on a suspended shelf above the point levers. The levers were coloured
to aid recognition; stop signal levers were red, distance signal levers were
yellow, points levers were black, spare levers were white, etc.
The levers were always numbered from left to right across
the frame and arranged in a standard fashion. Bearley West Junction controlled
a trailing crossover and a point on each line for the junction (one of which
required a facing point lock); In this photograph three white spare levers are
positioned on each side of the black point levers and the crossover independent
disc signal levers in the centre of the frame with up signals on one side and
down signals on the other side. C1930.
Robert Ferris
