Budbrook and Warwick Cold Store: gwrw2673

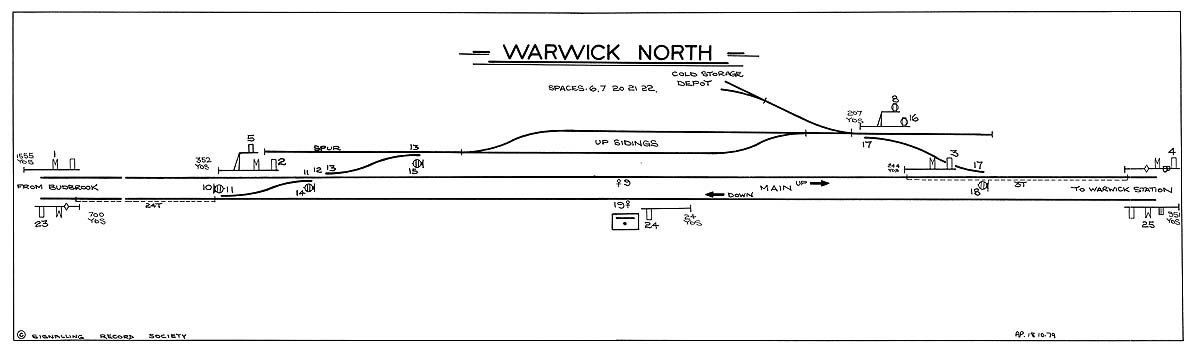

A low resolution version of the Signalling Diagram for Warwick North Signal Box showing the track layout and signalling arrangement

A low resolution version of the Signalling Diagram for Warwick North Signal Box showing the track layout and signalling arrangement. This Signal Box was built at the same time as the Warwick Cold Store reception sidings as an emergency wartime measure in June 1942. This Signalling Diagram has been reproduced courtesy of the Signalling Record Society (S.R.S.). Details of how to purchase their full resolution content is available here.

Warwick North Signal Box controlled the access to the sidings known as ‘Warwick North Depot Sidings’ situated on the up side of the line. From the Up Main line there was a facing connection leading to two reception sidings, each capable of holding forty wagons, engine and brake van, and a trailing connection leading to these two reception sidings and the two internal Depot sidings. From the Down Main line there was a trailing connection leading to the two reception sidings.

In Winter 1945, Warwick North Signal Box was open from 9:00 am to 5:00 pm on Weekdays and Saturdays, but in both the British Railway’s Appendix to the Service Time Table issued in 1953 and the Birmingham Traffic District Sectional Appendix to the Working Time Table issued in 1960, it identifies that – ‘Traffic will be worked in and out of the Depot specially, and Warwick North Signal Box will be opened specially, when necessary, for that purpose’. The Signal Box was closed when the northern connections to the main lines and one reception loop siding were taken out of use on 24th September 1961. It was replaced by 'Budbrook Ground Frame' which controlled access from the Up Main line trailing connection, but this was taken out of use when the final reception siding and rail connection to the Cold Storage's sidings were completely severed on 1st September 1969.

Robert Ferris
