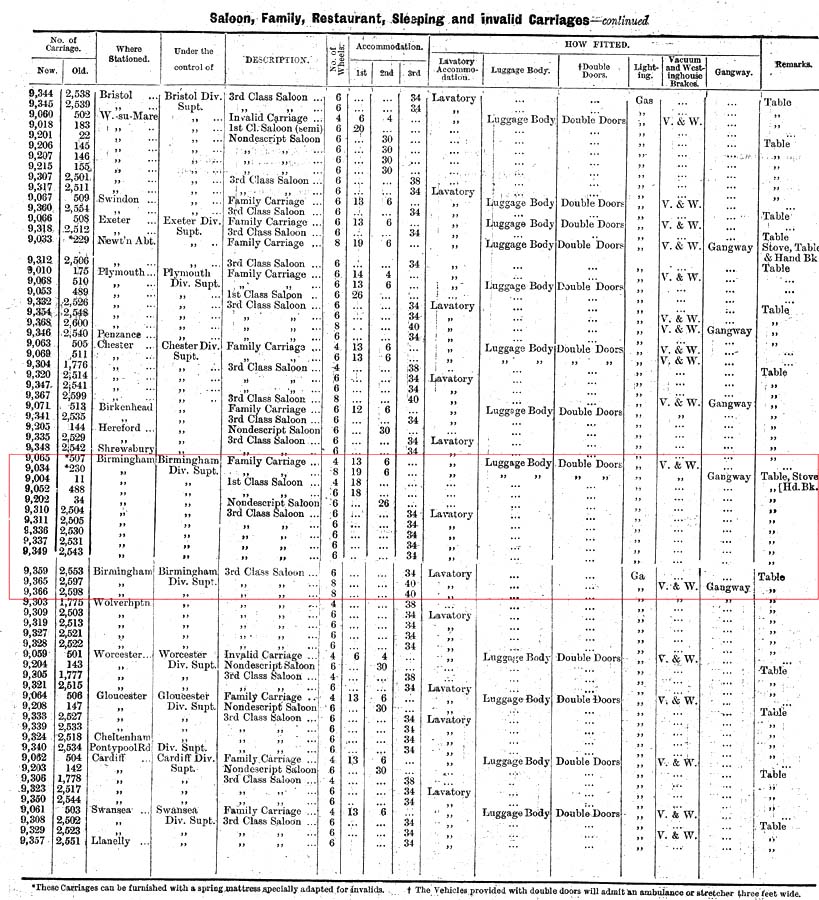

This extract from the Revised General Appendix to the Book
of Rules and Regulations which came into effect on 1st May 1910, details some
of the Saloon coaches stationed at various locations (including thirteen in
Birmingham). It is likely that these were stored at Tyseley Carriage Sidings
when not in use. A similar list can be found in the General Appendix to the
Book of Rules and Regulations which came into operation in October 1920. This
later list indicates that the same saloon coaches were still stationed at
Birmingham, with the exception of the two eight wheeled Third Class Saloons
numbered 9365 and 9366. These two saloons were converted for use in ambulance
trains during the First World War as records show that No 9365 reverted to
Third Class Saloon status in October 1921 (under Lot 1298), while No 9366
reverted to Saloon Status in February 1921 (under Lot 1284).
All of these saloons were available for hire by groups and
parties, when they would be attached to timetabled passenger trains. To hire a
saloon coach, the journeys must exceed 50 miles and required a minimum number
of fares depending upon the saloon type; four fares for an invalid or family
saloon, seven fares for a First Class Saloon and ten fares for a Third class
saloon. Travel on other railway companys lines was possible as some
saloon coaches were fitted with both Westinghouse and Vacuum brakes, but such
travel arrangements attracted additional charges.
Further specific details of the individual Saloons stationed
at Birmingham Division in 1910 are provided in the following table:
Running Number |
Description |
No of Wheels & Roof
type |
Dimensions |
Dia No. |
Lot No. |
Dates |
New |
Pre-1907 |
Construction |
Condemned |
9065 |
507 |
Family Carriage |
4, Clerestory |
310x 80 |
G42 |
304 |
1884 |
Parcel Van |
9034 |
230 |
Family Carriage |
8 Clerestory |
456x 86 |
G32 |
924 |
November 1899 |
|
9004 |
11 |
1st Class Saloon |
4, Clerestory |
270x 80 |
G17 |
543 |
August 1890 |
|
9052 |
488 |
1st Class Saloon |
6, Single Arc |
290x 76 |
n/a |
28 |
1870 |
|
9202 |
34 |
Nondescript Saloon |
6 |
310x 80 |
G27 |
|
1887 |
Milk & Fruit Van (O14) |
9310 |
2504 |
3rd Class Saloon |
6 (3 centre) |
310x 80 |
G19 |
632 |
May 1892 |
1932 |
9311 |
2505 |
3rd Class Saloon |
6 (3 centre) |
310x 80 |
G19 |
632 |
May 1892 |
1935 |
9336 |
2530 |
3rd Class Saloon |
6 (3 centre) |
31'0x 80 |
G20 |
774 |
May 1896 |
1933 |
9337 |
2531 |
3rd Class Saloon |
6 (3 centre) |
310x 80 |
G20 |
774 |
May 1896 |
1933 |
9349 |
2543 |
3rd Class Saloon |
6 (3 centre) |
310x 80 |
G20 |
824 |
December 1896 |
1933 |
9359 |
2553 |
3rd Class Saloon |
6 (3 centre) |
310x 80 |
G20 |
888 |
August 1898 |
1934 |
9365 |
2597 |
3rd Class Saloon |
8 Clerestory |
466x 86 |
G18 |
984 |
December 1901 |
|
9366 |
2598 |
3rd Class Saloon |
8 Clerestory |
466x 86 |
G18 |
984 |
December 1901 |
|
According to a January 1928 lecture on Great Western
Passenger Train Special Traffic the use of Saloon coaches had declined,
but remained sufficient for a number of new eight wheeled bogie saloons to be
built. In the 1930s most of the 6 wheeled saloon coaches were condemned,
while the diagram G27 saloon (No 9202) had been converted into a Milk &
Fruit Van (diagram O14) and the diagram G42 saloon (No 9065) became a Parcels
Van.
Robert Ferris
