GWR Route: Banbury to Wolverhampton

GWR Route: North Warwickshire Line

Tyseley Shed: gwrt2976

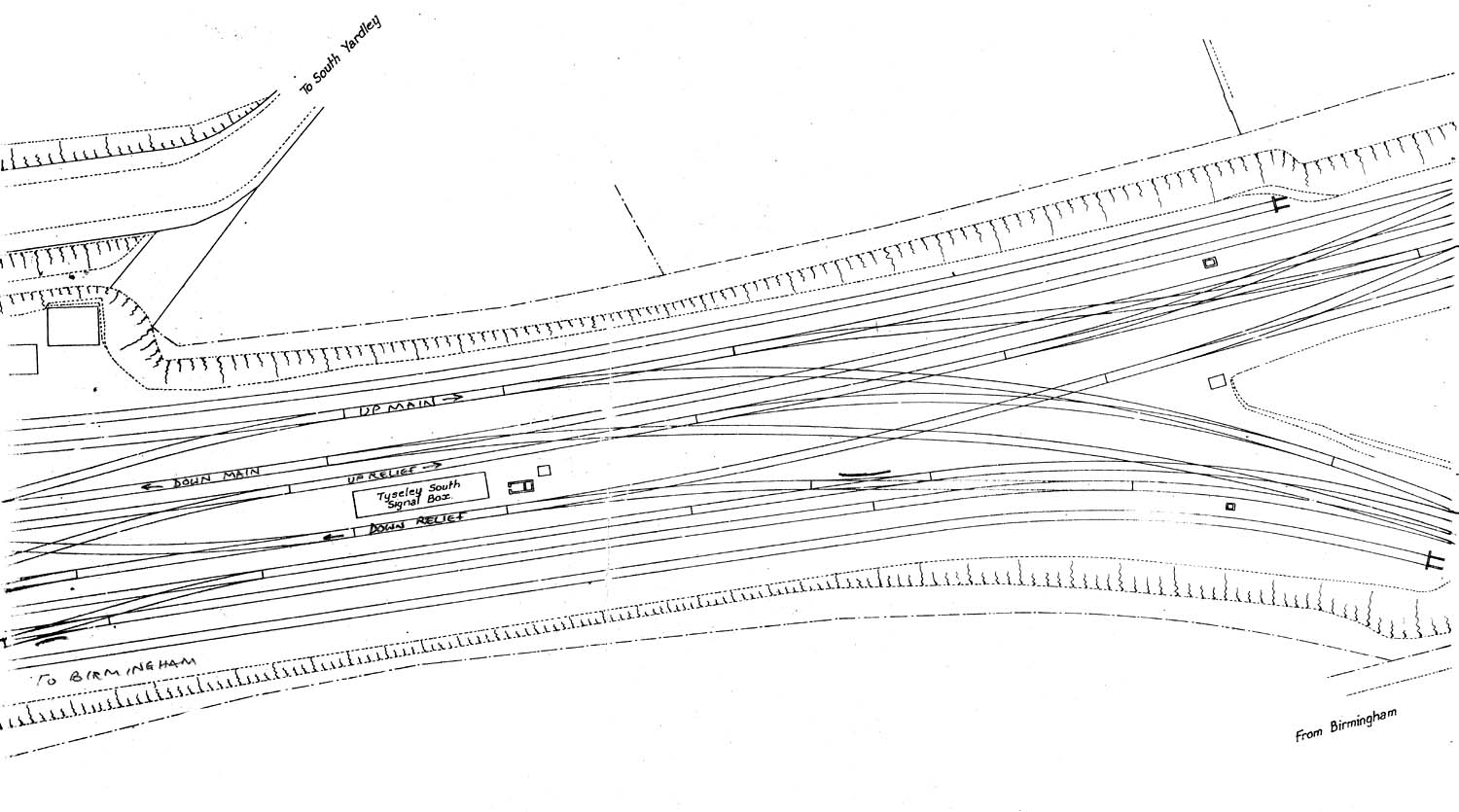

Plan of the track layout at the Junction with the North Warwickshire Line post 15th June 1913 and prior to the creation of a parallel double junction on 30th June 1935

Plan of the track layout at the Junction with the North Warwickshire Line post 15th June 1913 and prior to the creation of a parallel double junction on 30th June 1935. Tyseley South Signal Box retained its central position and overlooked the Main lines, but was now located between the two Relief lines. The previous track layout is shown on the plan ('gwrt2984'), while the subsequent track layout can be seen in the Signalling Diagram ('gwrt2985'). Changing to this new layout in 1935 entailed an authorised expenditure of £4,750.

Robert Ferris
