Bordesley Viaduct: gwrbg1707
|

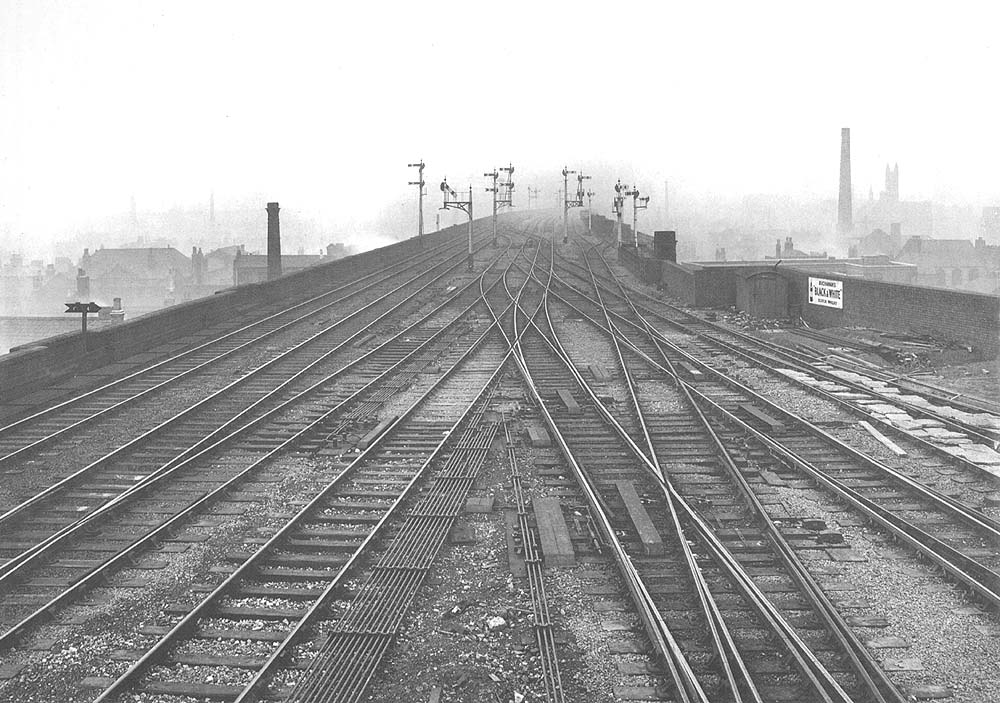

Looking towards Bordesley along the widened Bordesley
Viaduct from the Moor Street Signal Box in December 1913. There were five
railway lines on the viaduct, the pair on the left are the up and down main
lines and on the right is the up goods line. The pair of lines between them are
the up and down relief lines. Unlike Snow Hill, where the signalling and
switches were powered by electric motors, Moor Street signal box had mechanical
signalling and here the series of parallel square bar rodding for the point
switches can be clearly seen progressing up the viaduct through a series of
right angled crossings of the track. On the left in the parapet wall are two
recesses and in the first is a speed restriction warning board. These
distinctively arrow shaped boards were painted green and had one green and one
white light at night. They were placed at least half a mile before the place to
be protected and were used where it was necessary for trains to continue to
travel at a reduced speed for a lengthened period (rule 253[e]). They were used
instead of Flagmen and detonator, but there was a requirement for their
intended positions to be advised in the weekly notices.
Robert Ferris
