GWR Route: Banbury to Wolverhampton
Acocks Green & South Yardley Station: gwrag2462

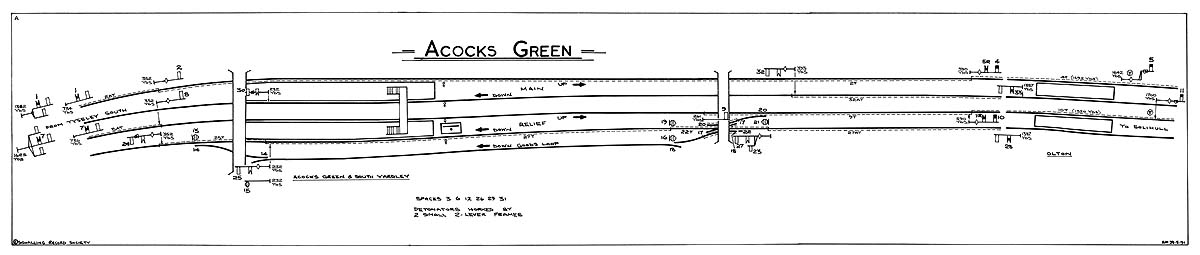

A low resolution version of the Signalling Diagram for
Acocks Green Signal Box showing the track layout and signalling arrangement
post 29th June 1947, until closure of this Signal Box in 1st September 1969.
This Signalling Diagram has been reproduced courtesy of the Signalling Record
Society (S.R.S.). Details of how to purchase their full resolution content is
available here.
The first Signal Box at Acocks Green had been built by 1875
at the north end of the up platform as a block box (see 'gwrag16b'). It was built by McKenzie & Holland and
the frame had twelve levers. In May 1879 a trailing crossover between the
double tracks was installed and in June 1892 two refuge sidings (one for each
direction) were connected by trailing switches to the main line. When built the
signal box had a wooden nameplate, but this was changed to a cast iron plate
ordered on 18th July 1899 (order No210). According to the Summer 1904 Service
Time Table, this Signal Box was open continuously with the exception of Sundays
between 4:00a.m. and 1:30p.m.
Over the years, traffic demands resulted in the Great
Western Railway gradually quadrupling the Birmingham main line between
Handsworth Junction and Lapworth. This was a huge undertaking and the work was
done piecemeal and was only finally completed in 1934. The first section south
of Birmingham to be quadrupled was that between Olton through Acocks Green
Station to Tyseley in January 1907 and as part of the work, a new Signal Box
was constructed adjacent to the Roberts Road bridge near the southern end of
the down island platform of the rebuilt station (see 'gwrag2455'). This short section of quadrupled track
was initially operated as a main line with refuge loops on either side for
slower trains and this paired by direction running arrangement was
retained even after the opening of the North Warwickshire line and extension of
the quadrupling to Small Heath South in November 1907. Only after the track was
quadrupled to Small Heath North in June 1913 was the operating arrangement
altered to provide main and relief lines.
The Second Signal Box which had opened in January 1907, was
of timber construction with a hipped roof (Great Western Railway standard type
27C). The sloping ridge tiles were held in place with hip hooks and there were
torpedo vents on the main ridge. By this date brick chimneys had been replaced
with stove pipes, but the Signal Box had the distinctive three up / two down
window panes. The Signal Box was 29 feet long by 12 feet wide and the operating
floor was 9 feet above rail level. Here the stud lever frame had 33 levers at
5.25 inch centres. The cast iron nameplate was ordered on 21st May 1906 (order
No 253). In addition to the 33 lever frame, two small two lever frames were
provided for the remote detonator placing machines on the main and relief
lines.
Service Time Table
|
Signal Box Opened |
Signal Box Opened |
Signal Box Closed |
Signal Box Closed |
(Mondays) |
(Weekdays and
Saturdays) |
(Sundays) |
Summer 1916 |
7:00 a.m. |
6:45 a.m. |
11:45 p.m. |
n/a |
Summer 1929 |
6:40 a.m. |
6:40 a.m. |
10:40 p.m. |
n/a |
Winter 1930 |
6:40 a.m. |
6:40 a.m. |
10:40 p.m. |
n/a |
Summer 1938 |
6:00 a.m. |
n/a |
n/a |
11:00 p.m. |
Summer 1939 |
6:00 a.m. |
n/a |
n/a |
11:00 p.m. |
Winter 1945 |
6:00 a.m. |
n/a |
n/a |
10:00 p.m. |
When Acocks Green Signal Box was open it controlled the
block sections on the main and relief double lines. The Signalman sent messages
to the preceding Signal Box to give permission for trains to enter the block
section on their line and used signals to indicate to train drivers when they
were allowed to proceed. Distant Signals, distinguished by their forked tails
and yellow colour (post September 1928) gave train drivers advance warning of
the status of the next Stop Signal.
From June 1913 Acocks Green Signal Box also controlled train
movements associated with access to the down goods loop from the down and up
relief lines and the associated crossover switches, which were extended to the
main lines on 25th June 1933, following the abolition of Olton Signal Box. The
Signalman could set a route with the point switch levers. These were
interlocked with various types of signals (including ground disc signals),
operation of which informed the locomotive driver of the selected route and
when to proceed. This interlocking with signals ensured that these indicated to
other trains, when they could no longer proceed safely and had to stop.
Visibility was important in the days before track circuit
indications and the Signal Box was positioned where it could oversee the most
complex trackwork which in this case included the facing switches on the down
relief line, but at an early date track circuit indication was added to the up
main line (circuit 2T) which was partly obscured by the main island platform
buildings. Beyond Woodcock Lane road bridge towards Olton the other three lines
were also provided with track circuit indication (circuits 32AT, 9T and 27AT)
and it was also provided on both up lines beyond the Sherbourne Road bridge
(circuits 2AT and 8AT) and the down relief line (circuit 27T). In July 1947,
track circuit indication was provided on both up tracks through Olton station
(circuits 4T and 10T) and in September 1957 it was added to the remaining the
crossover connections to prevent fouling of the lines adjacent to the switches
(circuit 22T). Track circuit indication is shown as a dotted line on the signal
diagram.
Acocks Green Signal Box closed on 1st September 1969.
