Harbury Cement Works: misc_hcw174
|

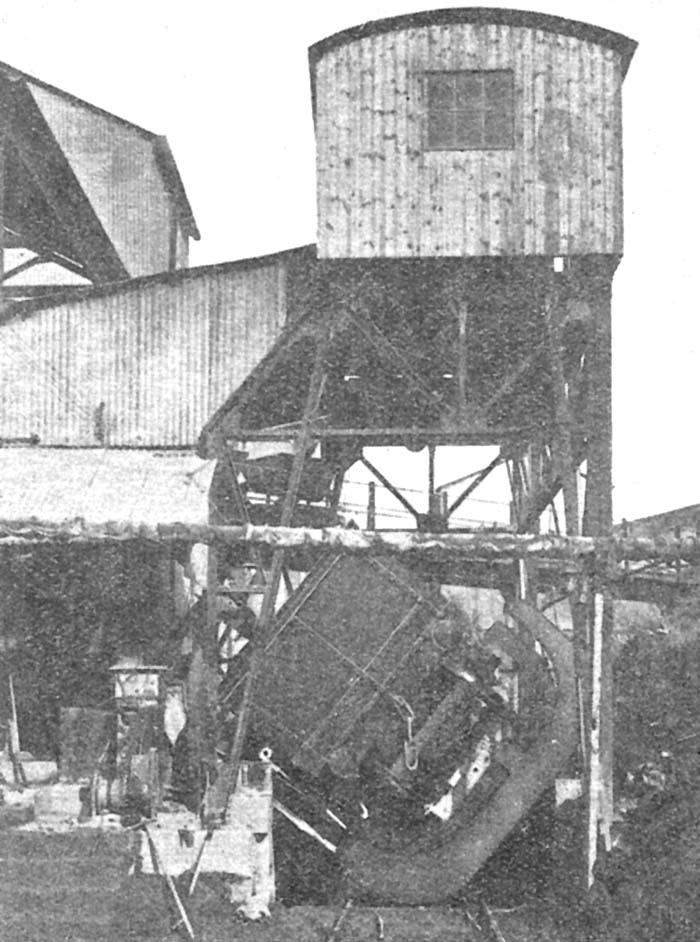

Rotary tipper in the process of discharging limestone from a
Great Western Railway twenty ton wagon (diagram N24) at the Harbury Cement
Works of Greaves, Bull and Lakin. Although the works had been purchased in 1927
by the Allied Cement Manufacturers (ACM) known as the Red Triangle
Group, they were still referenced as the Greaves, Bull and Lakin Cement
Works in Great Western Railway documentation. According to the Great Western
Railway magazine this automatic rotary tipper was installed and converted to
discharge twenty ton wagons by Fraser & Chalmers Ltd of Erith, Kent (a
subsidiary of the General Electric Company). Each wagon's contents was
discharged through the wagon's two side doors into a bin (or chute) alongside
the appliance. This was achieved by tipping each wagon approximately 50
degrees, so that unlike normal rotary tippers (see 'misc_abps172') this design required no clamping or
binding devices to hold the wagons to the rails. This feature and the increased
wagon size resulted in a tipping capacity of 300 tons per hour. Behind the
rotary tipper is a continuous bucket conveyor which is taking the discharged
limestone up to a high level enclosed belt conveyor for transportation across
the site to the kilns. At this time the Harbury Works was operating three
rotary kilns with a combined output of approximately 400 tons of Portland
cement per day.
The Great Western Railway saw advantages in the use of these
larger twenty ton wagons as they greatly reduced both a mineral train's tare
weight and its length. The company offered discounted rates of 5% for fully
loaded twenty ton wagon deliveries and in 1924 spent £285,000
constructing 950 twenty ton wagons, which they hired to private companies
(mainly involved in South Wales coal traffic). All the wagons had tipping doors
at both ends, but while 760 with single side doors (diagram N23) were built
mostly by wagon contractors (including 250 by the Birmingham Railway Carriage
and Wagon Co - see 'misc/brc&wc_works'), a
further 190 were built at the Great Western Railway's Swindon Works with two
side doors on each side (diagram N24). This latter group had running numbers
109811 to 110000 and it is likely that the twenty ton wagon in the photograph
is one of these.
Robert Ferris
