Studley & Astwood Bank Station: mrstud1371

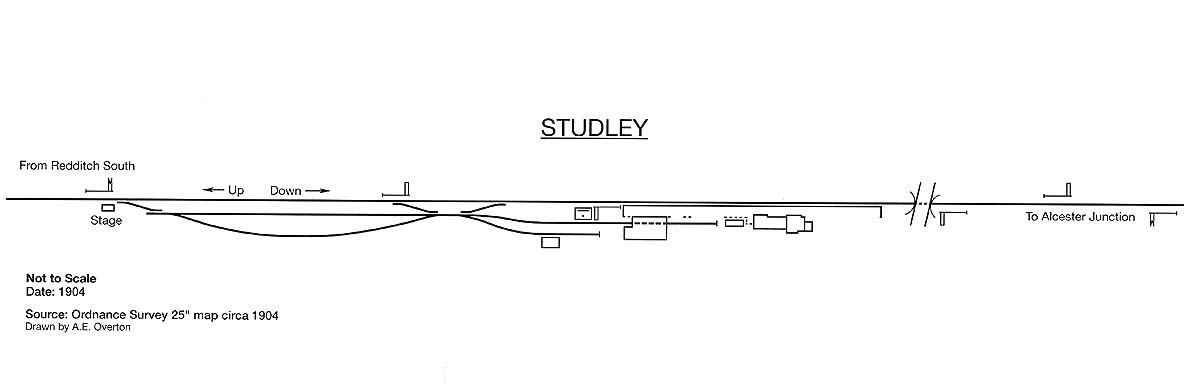

Schematic drawing of Studley Signal Box's signalling diagram

Schematic drawing of showing Studley & Astwood station's 1904 layout of both passenger and goods facilities. The signal box appears to only control the signal at the Redditch end of the station with the Stage controlling the crossover. Whilst Bob Essery states that the station had no passing loop, its quite clear should two trains need to pass each other then this would be possible.
