LMS Route: Evesham to Birmingham
Evesham Station: mre1339

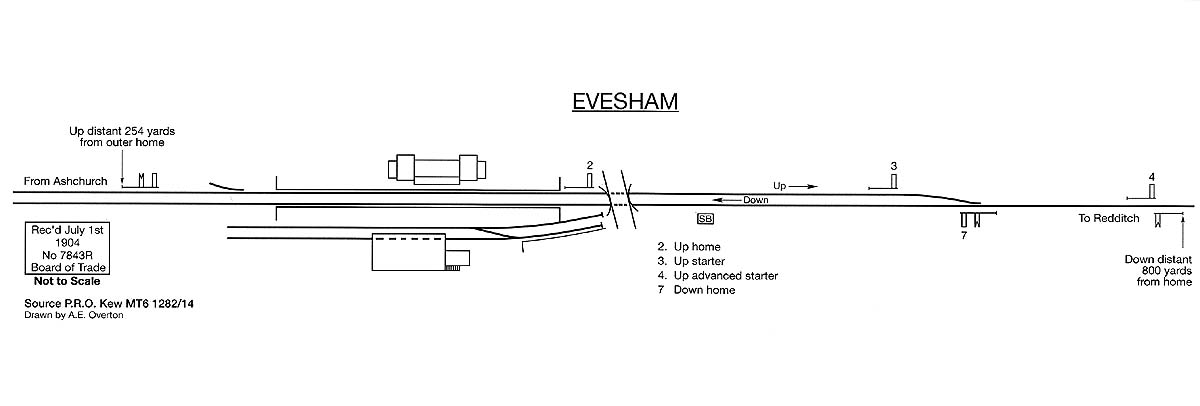

The 1904 schematic drawing of the signalling diagram showing the
removal of the goods yard connections to the main up and down lines. Image 'mre577' shows the station layout at the Redditch end of
Evesham station post 1903 but before the 1905 changes illustrated in image 'mre1338'. The Board of Trade approved the work to
proceed on 16th September 1904.
