Tyseley Shed: gwrt2984

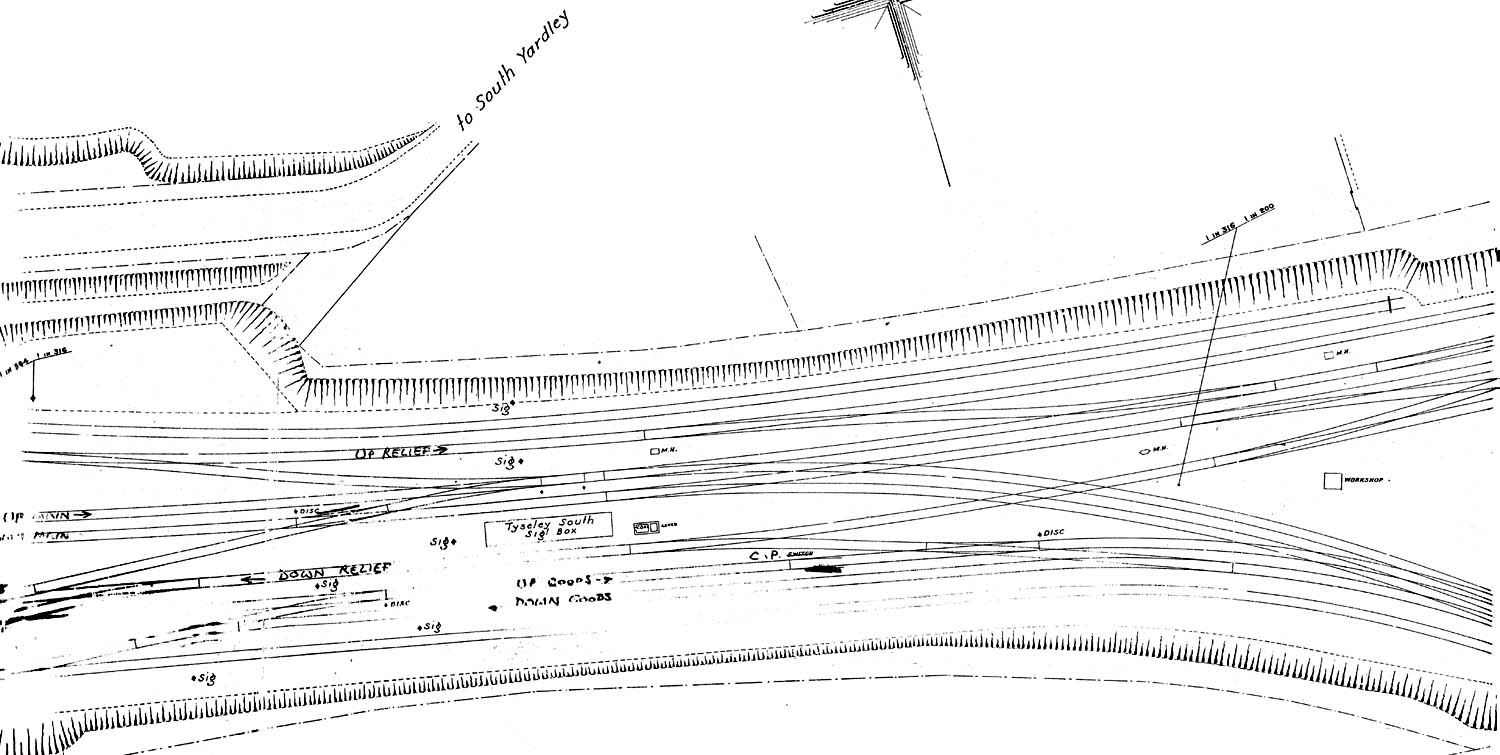

Plan of track layout at the Junction with the North Warwickshire Line prior to 8th June 1913, when the running lines were changed from being ‘paired by direction’ with loop lines on either side of the Main lines, to being ‘paired by use’ with separate Main and Relief lines. Here the Main lines ran through the centre of the station and in front of Tyseley South Signal Box. The subsequent track layout is shown in 'gwrt2976'.
