GWR Route: Banbury to Wolverhampton
Moor Street Station: gwrms2758

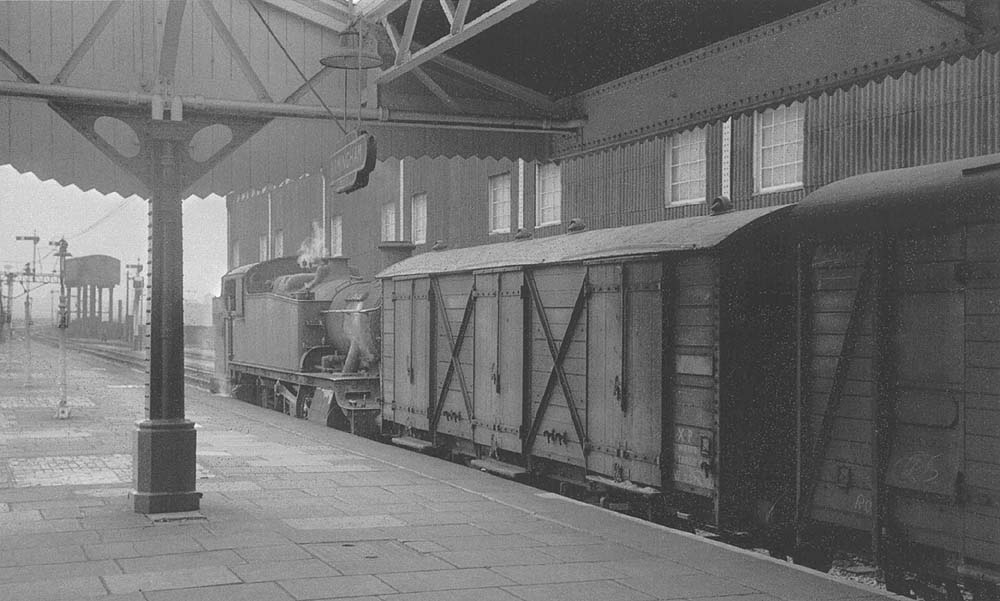

Ex-Great Western Railway 2-6-2T with a parcels train of long
wheelbase covered wagons in platform 3. The first wagon (No 2378) is a Fruit D
wagon.
The Great Western Railway constructed a number of four
wheel, 18 feet long wheelbase, ventilated covered wagons for fruit traffic
(Diagram Y11 - Fruit D) in 1939, which were also used for parcels and newspaper
traffic. These had screw couplings and fully fitted vacuum brakes making them
suitable for running at express speeds in passenger trains, although in the mid
1960s they were all limited to maximum speed of 45mph following a
derailment incident. The wagons were 28 foot 6 inches long over the headstocks
with three side doors on each side to facilitate rapid loading and unloading.
Note the raised step under the closest door, which is due to the position of
the lever brake handle below. Internally gas lighting was provided.
Construction continued after nationalisation and a later change from the shell
roof vents to a torpedo pattern prompted a new diagram number (Y14) to be
issued.
The following Fruit D (diagrams Y11 and Y14) covered wagons
were constructed by the Great Western Railway and British Railways at the
Swindon Works.
Lot |
Diagram |
Date |
Quantity |
Running Numbers |
L1649 |
Y11 |
1939 |
50 |
2867 to 2916 |
L1755 |
Y11 |
1951 |
20 |
2265, 2290, 2292, 2295, 2298, 2299, 2302,
2305, 2306, 2308, 2310, 2316, 2321, 2323, 2326, 2327, 2328, 2329, 2330, 2331,
2332, 2333, 2335, 2336, 2342, 2347, 2349, 2358, 2366, 2367, 2369, 2371, 2373,
2378, 2388, 2391, 2400 and three other numbers. |
L1765 |
Y11 |
1952 |
20 |
|
Y14 |
|
78 |
W3401W to W3478W |
30345 |
Y14 |
1956 |
65 |
W92000 to W92064 |
30383 |
Y14 |
1960 |
50 |
W92065 to W92114 |
Robert Ferris
