Moor Street Station: gwrms1214

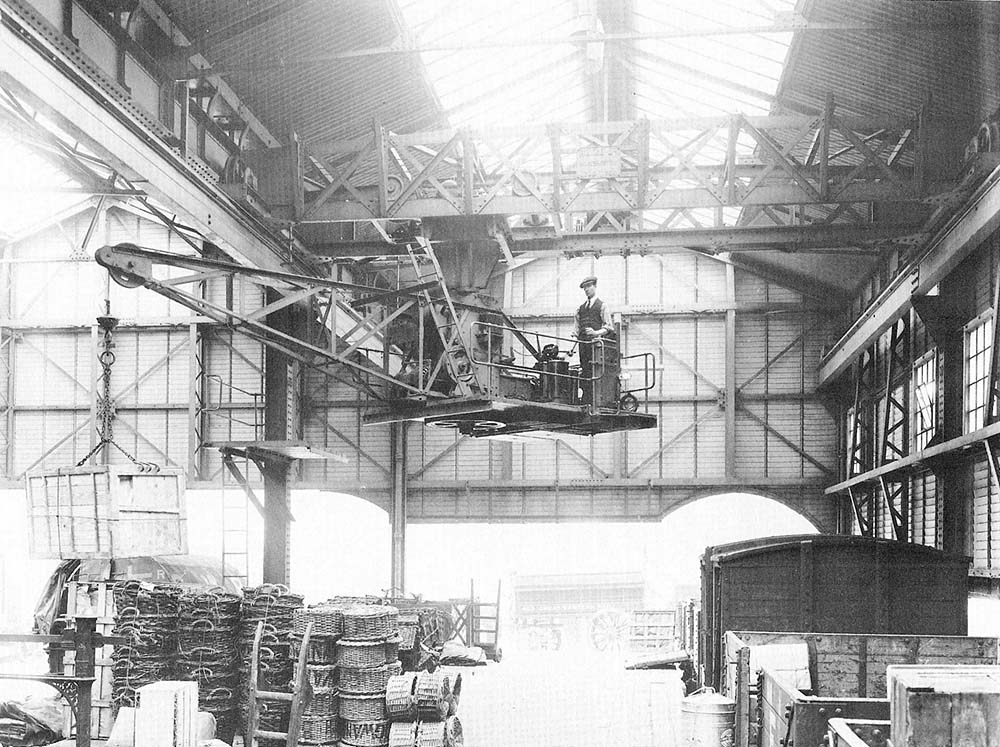

View of the travelling crane manufactured by Messrs Royce of
Manchester which was designed to travel the 400 feet length of the upper level
shed. The crane was slung beneath the travelling beam and could move up and
down the beam. The beam had a span of 28 feet 4½ inches and could travel
the length of the 400 foot long shed at an average speed of 250 feet per
minute. The jib of the crane was fixed but because it could rotate in
combination with moving up and down the beam meant that its area of operation
was much greater than that of a standard overhead crane.
