GWR Route: Birmingham and Henley in Arden Railway
Company
Lapworth to Henley in Arden Branch Line: gwrha2814

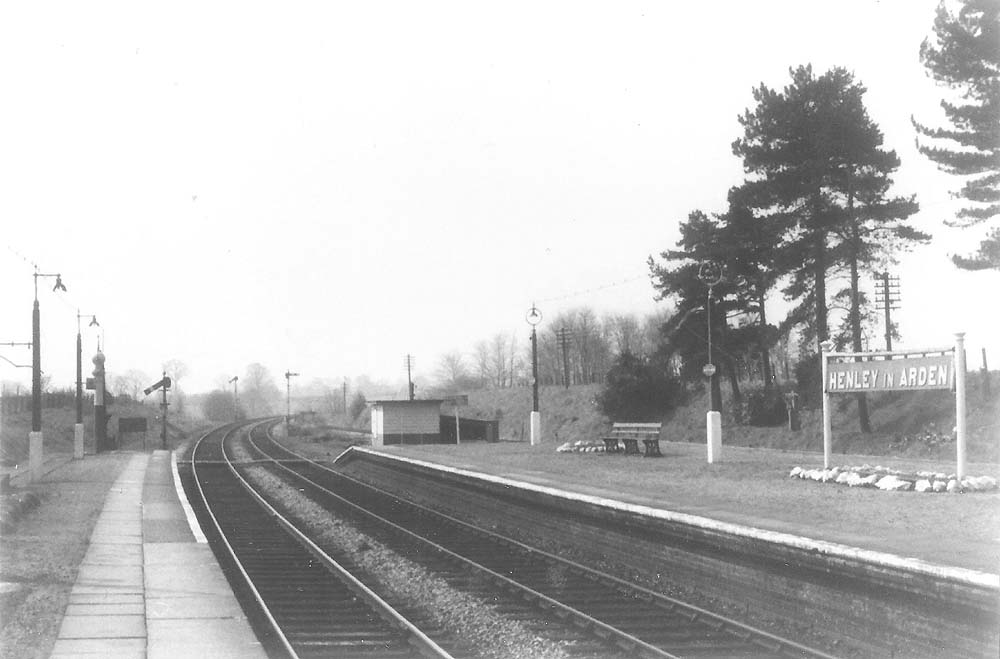

Looking south from the platforms at Henley-in-Arden sometime
after 1964. The down starter semaphore signal and down advanced starter
semaphore signal have both been cleared for a train to leave for Stratford. An
advanced starter signal is placed a goods train's length in advance of the
starter signal at places where there is a trailing siding connection or
crossover road in advance of the starter signal. This signal has the same uses
as the starter signal and allows the signalman to lower the starter signal to
allow the train to go forward sufficient to then reverse either into the siding
or crossover, but prevents the train from going forward into the next section
until the line ahead is clear. Henley-in-Arden had both; a trailing down siding
and a trailing crossover, at this southern end of the station (see image 'sig-diag-henley'), although by the time this
photograph was taken both had been removed.
This location was the scene of the Mafeking accident in 1911
(see image 'gwrha759'). The express had been
mistakenly diverted onto the bay line, which is behind the island platform on
the right. This line is connected to the parallel loop line (to allow a
locomotive to be released), but does not reconnect to either of the main lines,
instead it terminates at a set of buffers visible near to the up home signal
post.
This photograph is displayed courtesy of the HMRS
(Historical Model Railway Society) and copies can be ordered directly from them
using the link HERE, quoting reference AEX909.
Robert Ferris
