Bordesley Shed: gwrbg-shed1958

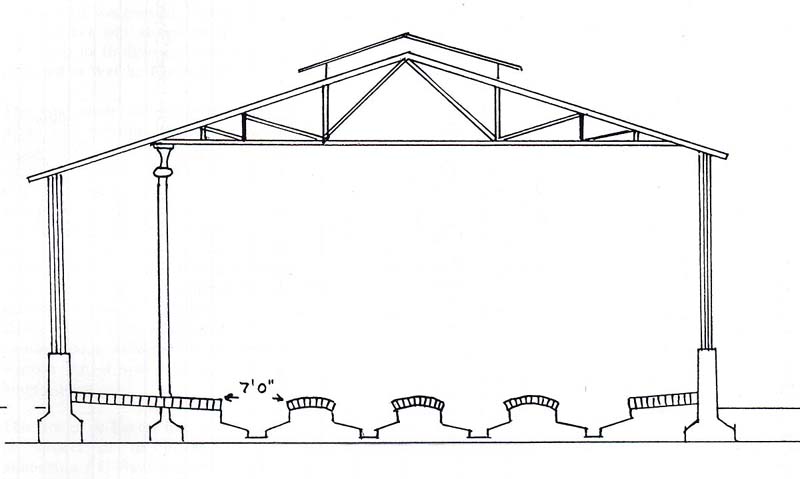

Schematic drawing showing a transverse section of the 1854 broad gauge Birmingham Engine House at Bordesley

Schematic drawing showing a transverse section of the 1854 broad gauge Birmingham Engine House at Bordesley. Sketched by RS Potts in 1997 for the Broad Gauge Society's Magazine, the above elevation was part of a drawing (the other two parts being 'gwrbg-shed1956' and 'gwrbg-shed1959') notes that the original drawing was prepared in the Engineers Office at Paddington and were signed ER for CS, dated April 1 1854 and traced at Fluyder Street. RS Potts further records Public Record Office, Kew, RAIL 252/95.
