GWR Route: North Warwickshire Line

Bordesley Shed: gwrbg-shed1957

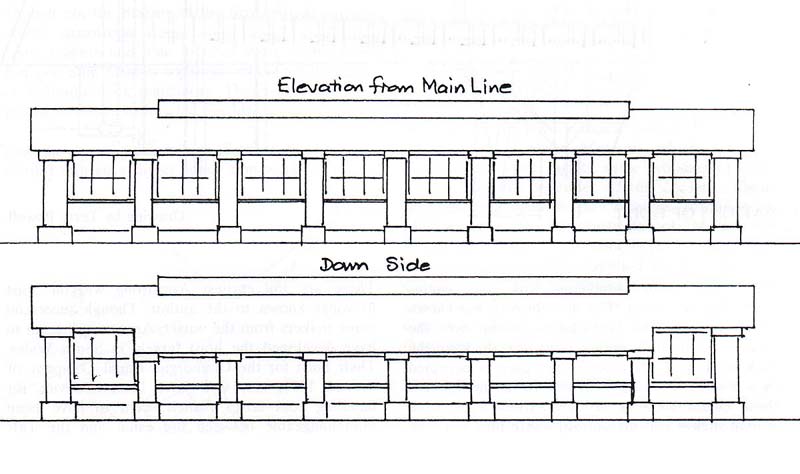

Schematic drawings showing the two side elevations of the 1854 broad gauge Birmingham Engine House at Bordesley

Schematic drawings showing the two side elevations of the 1854 broad gauge Birmingham Engine House at Bordesley. Sketched by RS Potts in 1997 for the Broad Gauge Society's Magazine, the above elevation was part of a drawing (the other part being 'gwrbg-shed1962') notes that the original drawing was prepared in the Engineers Office at Paddington and were signed ER for CS, dated March 14 1854 and traced at Fluyder Street. RS Potts further records Public Record Office, Kew, RAIL 252/95.
